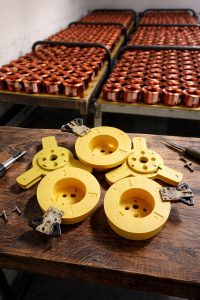

Servo Stabilizer Coil Cup Fitting (Carbon Brush Holder Assembly)

Servo stabilizer coil cup fitting, also known as a carbon brush holder assembly, is an essential mechanical and electrical component used in servo voltage stabilizers. It is designed to securely hold the carbon brushes that make contact with the copper winding of the toroidal coil. This fitting plays a critical role in ensuring smooth voltage regulation by allowing precise movement and stable electrical contact.

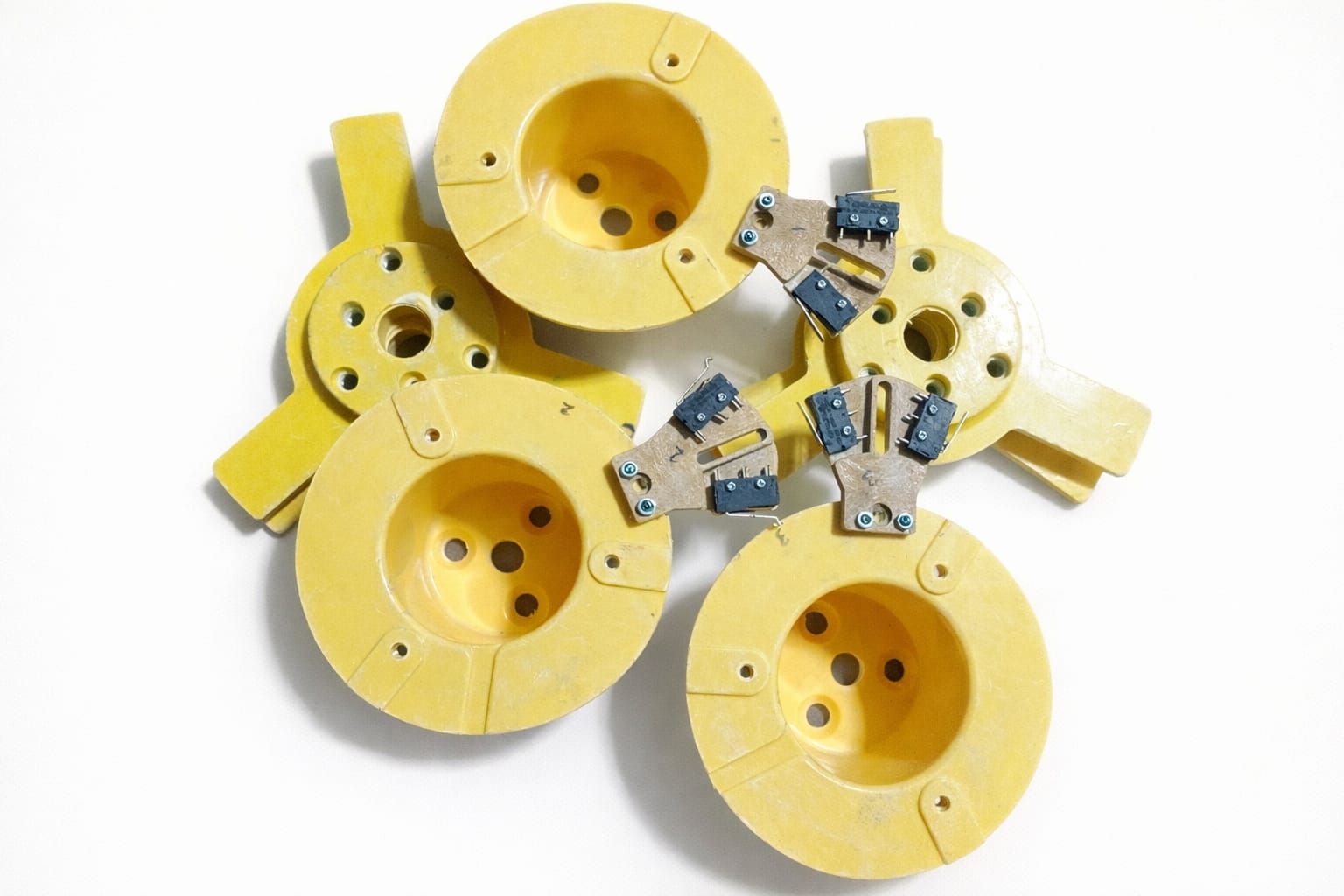

The cup fitting is typically made from high-quality insulating material, often in a circular or semi-circular shape, which fits perfectly over or around the stabilizer coil. It includes mounting holes and slots for proper installation, along with a provision to attach the carbon brush holder mechanism. The attached brush assembly moves across the copper coil surface, adjusting the output voltage based on input fluctuations.

In servo stabilizers, the voltage correction process depends on the accurate positioning of the carbon brush over the coil winding. The coil cup fitting ensures that the brush holder remains aligned and stable during operation. This helps maintain consistent contact, reduces sparking, and improves the overall efficiency of the stabilizer.

These fittings are commonly used in single-phase and three-phase servo stabilizers across various capacities. They are widely applied in homes, offices, and industrial setups where voltage stability is critical. The durable construction and heat-resistant properties make them suitable for long-term use.

Overall, the servo stabilizer coil cup fitting enhances the performance, reliability, and lifespan of the stabilizer system by ensuring proper brush movement and secure installation.

Benefits (20):
Ensures proper brush alignment
Improves voltage regulation accuracy
Provides stable mounting
Reduces electrical sparking
Enhances safety
Durable construction
Heat resistant material
Long service life
Easy installation
Compatible with various stabilizers
Supports smooth brush movement
Increases efficiency
Low maintenance
Reliable performance
Prevents misalignment issues
Suitable for single and three phase
Compact design
Cost effective component
Improves system stability
Essential for servo operation
