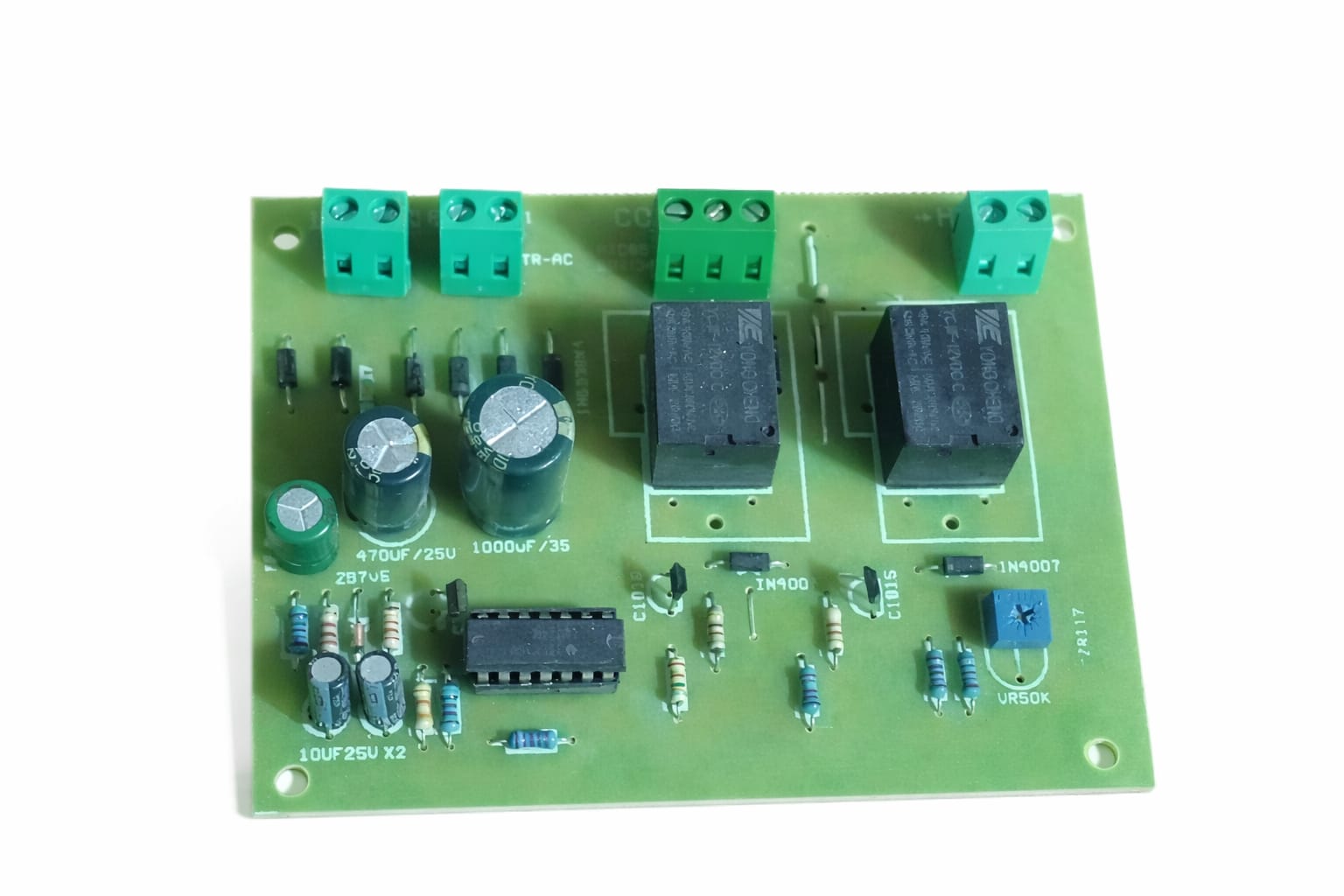

A servo stabilizer 2 relay control circuit is an essential electronic system designed to maintain a stable voltage supply for electrical appliances. Voltage fluctuations are common in many areas and can damage sensitive devices such as air conditioners, refrigerators, computers, and industrial equipment. This circuit helps regulate the voltage automatically, ensuring a constant and safe output.
The system uses two relays to control high and low voltage conditions. When the input voltage rises above the preset limit, one relay activates to reduce the voltage. Similarly, when the voltage drops below the required level, the second relay activates to increase it. This switching mechanism works with a transformer and control circuit to maintain proper voltage levels.
The circuit may include components such as comparators and voltage sensing units that continuously monitor the input voltage. When the voltage goes beyond the safe range, the circuit responds instantly by switching the appropriate relay. This automatic process ensures fast correction and protects connected devices from sudden voltage spikes or drops.
Servo stabilizer relay circuits are widely used in homes, offices, and industries. They are known for their reliability, efficiency, and ease of implementation. The design is simple yet effective, making it suitable for both beginners and professionals working on electronic projects.
By maintaining voltage stability, this circuit improves the performance and lifespan of electrical equipment. It also reduces the risk of electrical faults and enhances overall system safety. With proper components and setup, the servo stabilizer 2 relay circuit provides long-term protection and efficient voltage regulation.
Benefits (20):
Provides stable voltage
Protects appliances from damage
Improves energy efficiency
Operates automatically
Requires low maintenance
Cost-effective solution
Extends appliance lifespan
Fast response to fluctuations
Offers over-voltage protection
Offers under-voltage protection
Suitable for industrial use
Ideal for home appliances
Reliable performance
Easy to build
Compact design
Helps save electricity
Ensures safe operation
Controls voltage fluctuations
Continuous monitoring
User-friendly system
